Cake Packing System
본문
■ SYSTEM 개요

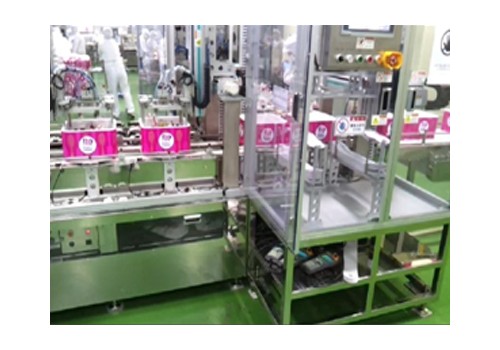

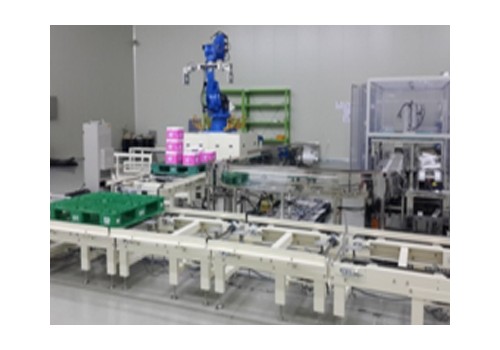

본 System은 Cake 자동화 System으로써 Cap Supply / Conveyor / Cap Closing / Cake & Pallet / Robot System 공정을 거쳐 Cake Wrapping 후 Cake Pallet 다단적재 배출하는 System임.
■ SPECIFICA
구분 |
기본사양 |
제품 Size |
1. Garden : 240mm x 240mm x 30mm 2. Park : 268mm x 268mm x 30mm 3. Plaza : 300mm x 300mm x 35mm |
Pallet Size |
1200mm(W) x 1000m(D) x 150mm(H) |
Tact Time |
40ea / 1분당 |
Cap Supply |
Cap 적재량 : 300ea |
T-T Chain C/V |
1열, 2열 |
Ring C/V |
lon Blow |
Cap Closing |
동시 2ea x 3Set 배출 |
6축 Robot |
Motoman-ES165D |
■ 공정
Roll Forming → Top Press → Roll Bending→ Side Press
